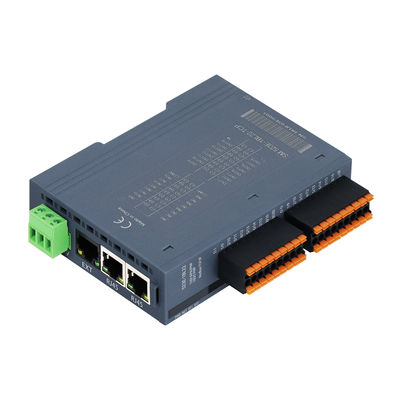

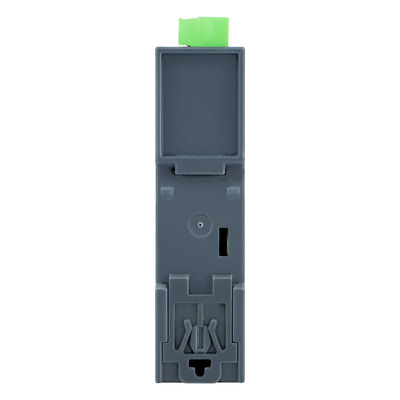

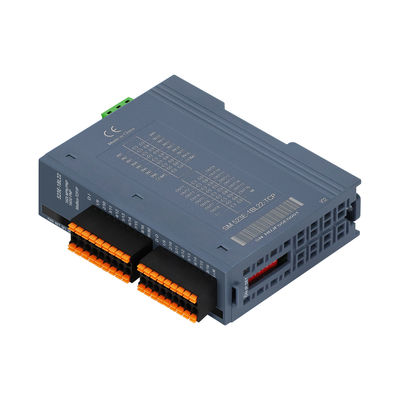

Modbus-TCP bus PAL I/O System extensible coupler
Industrial Control 16DI+16DO PNP DC24V Input 2RJ45 IP20
Product Features of Modbus-TCP Extensible Coupler
Specification of Modbus-TCP PAL I/O system
|
Model |
OM523E distributed scalable coupler |
|
Technical Specifications |
|
|
Operating Voltage |
24VDC (18VDC~28VDC) |
|
Operating Current Consumption |
Different product models vary, please refer to the product manual for details. |
|
Power Protection |
Anti-reverse connection protection, surge absorption |
|

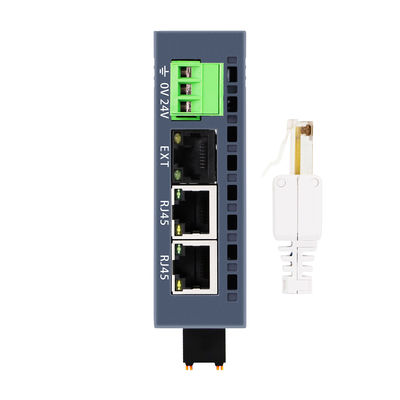

Communication Interface |
2*RJ45 |
|
Expansion Module interface |
1*RJ45 |
|
Power Terminal Type |
Plug-in connectors, screw terminals |
|
Signal Terminal Type |
Plug-in connector, direct plug-in PUSH-IN connection port |
|
Display Instructions |
Power indicator light, NET green indicator light, SF red indicator light,IO signal green indicator light |
|
Protocol |
Modbus-TCP/IP |
|
Master-Slave Category |
Independent slave device |
|
Ontology IO Point |
Yes, see ordering data for details |
|
Overcurrent protection Threshold |
1.5A,5ms |
|
IO Response Time |
Minimum 5ms |
|
Expansion Capabilities |
Supports expansion of 16 EM500E-EM modules |
|
Cable Length (shielded) |
Maximum 500m |
|
Cable Length (Unshielded) |
The longest input point is 300m, the longest output point is 150m |
|
Slave Settings |
|
|

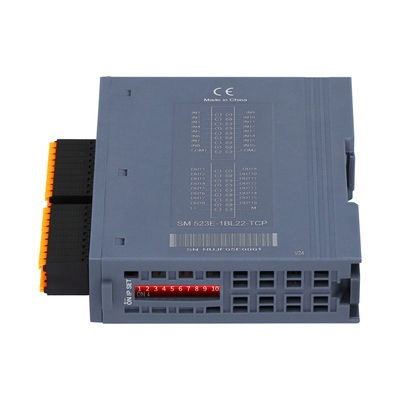

IP Settings |
Set by DIP switch or web page |
|
Maximum Number of Stations per Segment |
255 (The specific number of supported stations is determined by the main station) |
|
Working Environment |
|
|
Working Temperature |
-20~60℃ |
|
Working Humidity |
5%~90% (no condensing) |
|
Protection Level |
IP20 |
|
Dimensions (L*W*H) |
27mm*104mm*114mm |
Packing
Ordering Details
|
Specification |
Product No. |
|
OM521E vertical internal bus distributed expandable coupler, Modbus-TCP bus, 3 RJ45 ports, WellAUBUS backplane bus (blackRJ45 port network cable cascading, Category 5e network cable module length (limited to 20 meters), total extension cable total (limited to 150 meters), and 16 modules can be expanded.24VDC power supply, with 8-bit dial setting station IP address, the body comes with 32DI (common cathode/common anode input), IP20Protection level, supports DN35 rail installation |
OM521E-1BL22-TCP |
|
OM522E vertical internal bus distributed scalable coupler, Modbus-TCP bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port network cable cascade, Category 5e network cable module length (limited to 20 meters), total extension cable total (limited to 150 meters) and can be expanded to 16 modules.24VDC power supply, with 8-digit dial code to set the station IP address, the body comes with 32DO (PNP output), IP20Protection level, supports DN35 rail installation |
OM522E-1BL22-TCP |
|

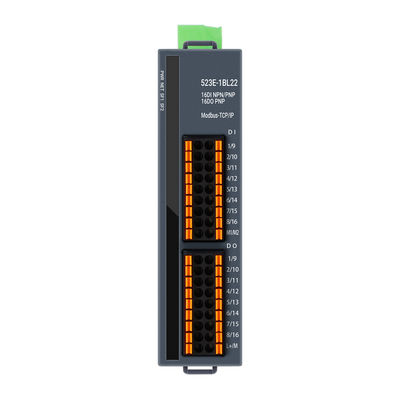

OM523E vertical internal bus distributed expandable coupler, Modbus-TCP bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port network cable cascading, the length between Category 5e network cable module length (limited to 20 meters), total extension cable total (limited to 150 meters), and 16 modules can be expanded.24VDC power supply, with 8-bit dial setting station IP address, the body comes with 16DI (common cathode/common anode input), 16DO (PNP output), IP20 protection level, supports DN35 rail installation |
OM523E-1BL22-TCP |
