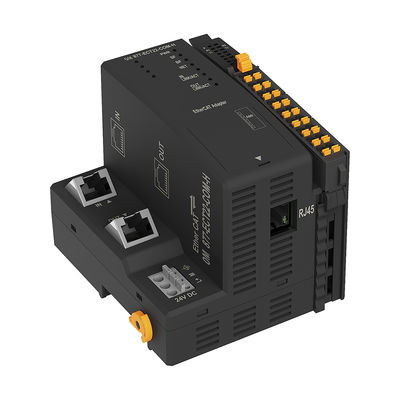

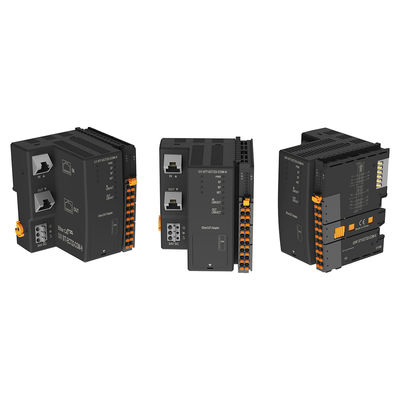

PLC IO Module SM877H serial communication EtherCAT bus coupler

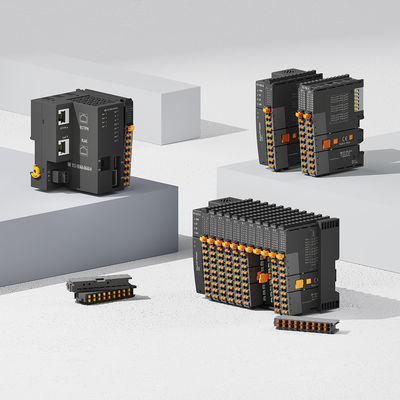

IO module expandable to 32 modules
Product Features of SM877H Serial Communication EtherCAT Bus Coupler
Specification of EtherCAT PAL I/O module
|
|
||
|
Model |
SM877H EtherCATserial communication coupler |
SM877H Prof inet-RTserial communication coupler |
|
Product Description |
3 RJ45 interfaces, 24VDC power supply, stable performance and strong anti-interference performance |
|
|
Technical Specifications |
||
|
Product No. |
OM 877-ECT22-COM-H |
OM 877-PNT22-COM-H |
|
Electrical Interface |
RJ45 |
|
|
I/O Power |
24VDC(rated), output current＜10A |
|
|
Current Consumption |
96mA |
|
|
Cable length (shielded twisted pair) |
1000m(Determined by the actual baud rate used) |
|
|
Bus +5VDC Current Capacity |
<2A (If the number of expansion modules exceeds 16, be sure to add an SM898-24D05-H power relay module) |
|
|
Protocol |
EtherCAT Slave Station |
Prof inet-RT Slave Station |
|
Slave Station Settings |
||
|
Address Settings |
Configured by DIP switch or assigned by master station |
Configured by programming software or assigned by master station |
|
Maximum Number of Stations per Segment |
255 |
|
|
Isolation |
||
|
Between Channel and Bus |
Yes |
|
|
Power to Bus |
Yes |
|
|
The number of I/Os that the Ontology comes with |
No |
|
|
Display Indication |
Power +24V green light, BF red light, SF red light, NET red light |
|
|
System Power Diagnostics and Warnings |
Support |
|
|
Working Environment |
Working temperature: -20～60℃, relative humidity: 5%～90% (non-condensation) |
|
|
Dimensions (L× W× H) |
84*103*82 |
|
Ordering Details
|
Specifications |
Product No. |
|
SM877H serial communication coupler, EtherCAT bus, 3 RJ45 ports, WellBUS backplane bus, expandable to 32 modules, 24VDC power supply, with 6-digit dial code to set the station ID address, 2 RS485 or RS232 interfaces, supports Modbus RTU and free port protocols, the terminals are pluggable |
OM 877-ECT22-COM-H |
|
SM877H serial communication coupler, Profinet-RT bus, 3 RJ45 ports, WellBUS backplane bus, expandable to 32 modules, 24VDC power supply, 2 RS485 or RS232 interfaces, supports Modbus RTU and free port protocols, the terminals are pluggable |
OM 877-PNT22-COM-H |
