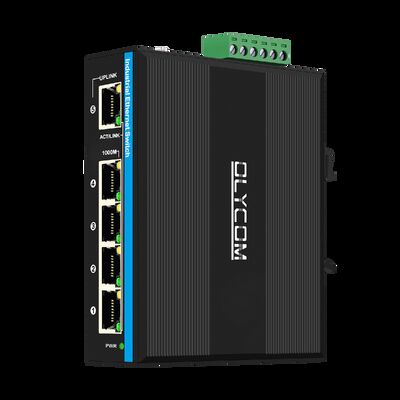

Industrial Solar PoE Switch DC12-48V 240W Web Managed Network Switch for Cctv Systems

Industrial Solar PoE Switch DC12-48V 240W

Web Managed Network Switch for Cctv Systems

Key Features of 5 port Web managed Network Switch:

• Support power on PoE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
•  IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports

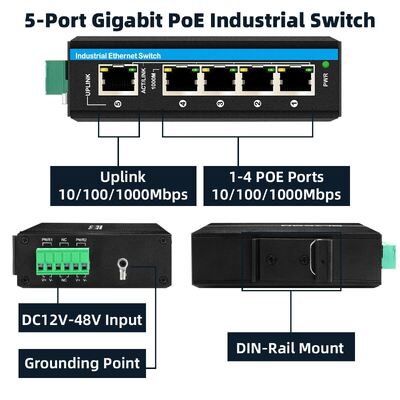

•  4 x 10/100/1000Mbps Auto-sensing RJ45 ports
•  1 x 10/100/1000Mbps uplink network port

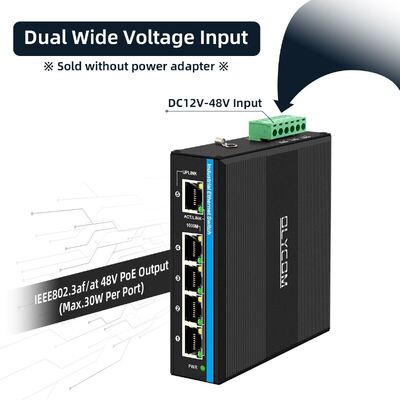

•  Built-in voltage booster for DC12-48V input which can be used for solar power/Trunk/VoIP system/CCTV security system
•  6KV Ethernet surge protection, adapt to a harsh outdoor environment
•  Support Auto MDI/MDIX
•  Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
•  IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
•  Max power to15.4W under af standard, 30W under at standard to each PoE port
•  Detect the PoE models of electrical equipments.

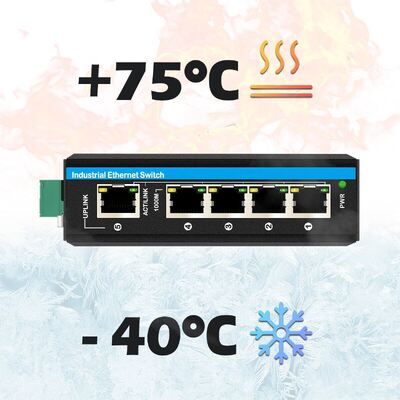

•  Operating environment temperature: -40℃~75℃
•  Support web management features like IP address settings, port settings, VLAN, QoS, IGMP, Link Aggregation, Loop protection, RSTP, Port Mirroring, Port Isolation, Bandwidth Control, Jumbo Frames, MAC Constraints, Green Ethernet, EEE, SNMP(only supports V1 and some V2 nodes), MAC address, Broadcast Storm, Port Statistics, Cable diagnostics, Firmware Upgrade, Configuration backup, Reset, Save, Restart

Specification of Industrial Solar PoE Switch

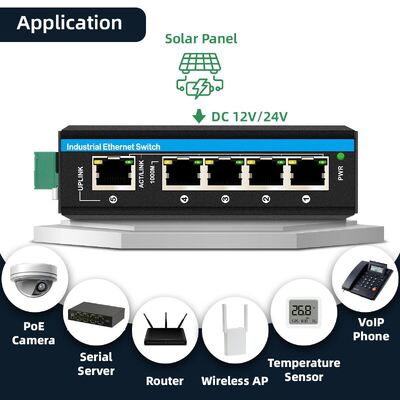

Application


Packing box of Din rail unmanaged switch:


• Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
• The standard packing usually contains a main device, a warranty card and a user manual.
• Packing box dimension for 1pc: 23*16.5*5.8cm
• 40pcs in a packing box of 67*33*47cm dimension.

 Ordering Details

FAQ:


1. Q: How does this Industrial 5 Ports Gigabit POE+ Network Switch compare to other standard POE switches?

A: This 5port PoE switch features a built-in voltage booster which enables it to utilize a power input range of 12-48VDC, whereas typical POE switches support 48VDC input only.

2. Q: Does this industrial 5 ports PoE switch support 24VDC power output?

A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.

3. Q: Is it a managed industrial network switch?

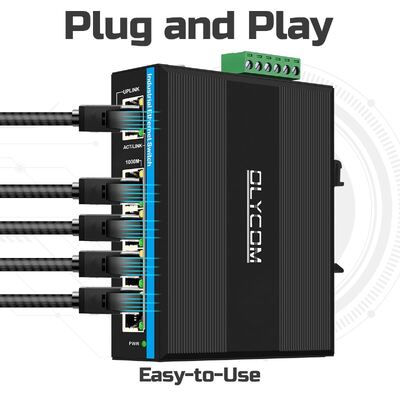

A: It is unmanaged industrial network switch and no need any setting. It is plug and play, easy to use.

4. Q: What's is the PoE Pin Assignment of this Industrial 5 Ports POE+ Network Switch?

A: It supports both 1/2 (V+),3/6 (V-) and 4/5 (V+),7/8 (V-).

5. Q: Can i use it with one Non-PoE devices?

A: Yes, sure. If one Non-PoE devices is connected with this industrial 5port PoE switch. The industrial 5port PoE switch will provide data only, and don't provide power any more.
