| Product Name | 10/100/1000Mbps Industrial Fiber Switch (2F+2TP) |
| Model No. | IM-FS220GE |
| Port Configuration | 2 x 1000Mbps SFP ports (SM:1310nm/1550nm,20Km; 1490nm/1550nm,40-120Km; MM:1310nm,2Km) 2 x 10/100/1000M UTP RJ45 (MDI/MDIX auto-sensing) |
| Switching Features | Storage and forward transmission mode System bandwidth: 40Gbps DRAM: 128M Flash: 16M Packet buffer: 4Mb |
| Network Media | 10BASE-T: CAT3/CAT4/CAT5 UTP (≤100m) 100/1000BASE-TX: CAT5 or above STP (≤100m) SFP transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LED Indicators | Power, network, fiber |
| Power Supply | Input voltage: DC 12-52V No-load power: 5W Reverse connection support |

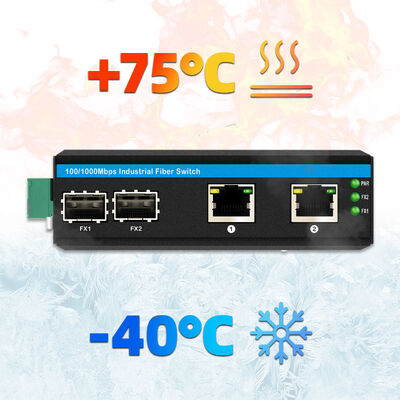

| Environmental | Working temperature: -40°C to 75°C Storage temperature: -40°C to 85°C Working humidity: 10%-90% non-condensing Storage humidity: 10%-95% non-condensing |
| Industry Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: EN 61000-4-2/3/4/5/6/8 Level 3 Vibration: IEC 60068-2-6 Rail Traffic: EN 50121-4 |
| Safety | CE Mark, commercial CE/LVD EN60950 |

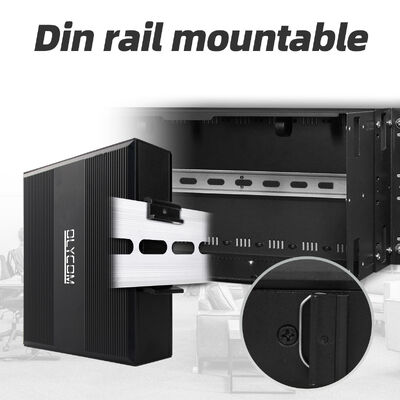

| Mechanical | Corrugated metal shell, IP40 rating Dimensions: 113.8 x 93 x 34.9mm Mounting: DIN-rail |
| Warranty | 3 years |
