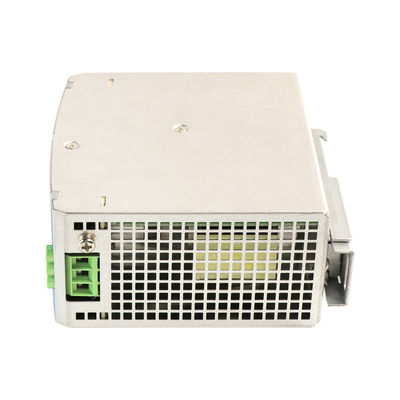

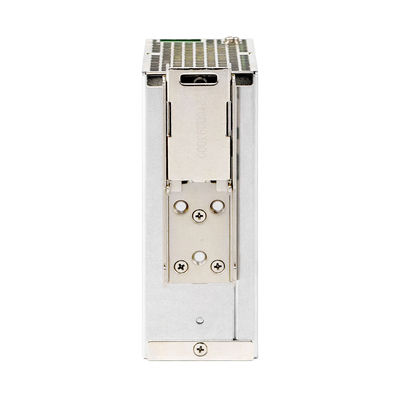

24V 40A Industrial DIN-Rail Power Supply
Key Feature
Specification
|
Input |
|||||
|
Item |
Operating Conditions |
Min. |
Typ. |
Max. |
Unit |
|
Input Voltage Range |
Rated input (Certified voltage) |
200 |
|
240 |
VAC |
|
AC input |
180 |
|
264 |
VAC |
|
|
DC input |
254 |
|
370 |
VDC |
|
|
Input Voltage Frequency |
Rated input (Certified voltage) |
50 |
|
60 |
Hz |
|
AC input |
47 |
|
63 |
||
|
Input Current |
Rated input (Certified voltage) |
|
|
6 |
A |
|
230VAC |
|
|
6 |
||
|
Inrush Current |
230VAC(Cold Start) |
|
|
50 |
|
|
Power Factor |
230VAC |
0.95 |
|
|
|
|
Start-up Delay Time |
230VAC, rated load |
|
1000 |
|
Ms |
|
Input Fuse |
Built-in fuse |
|
10 |
|
A |
|
Hot Plug |
|
Unavailable |
|||
|
Output |
|||||
|
Item |
Operating Conditions |
Min. |
Typ. |
Max. |
Unit |
|
Output Voltage Accuracy |
Full load range
|
|
±1.0 |
|
% |
|
Line Regulation |
Rated load |
|
±0.5 |
|
|
|
Load Regulation |
0% - 100% load |
|
±1.0 |
|
|
|
Minimum Load |
|
0 |
|
|
|
|
Stand-by Power Consumption |
|
|
9 |
|
W |
|
Ripple & Noise |
20MHz bandwidth (peak-to-peak value) |
|
|
180 |
mV |
|
Temperature Coefficient |
|
|
±0.03 |
|
%/℃ |
|
Minimum Load |
|
0 |
|
|
% |
|
Hold-up Time |
230VAC, rated load |
|
20 |
|
ms |
|
DC OK Signal |
Resistive load |
30VDC/7A Max. |
|||
|
Short Circuit Protection |
|
Hiccup mode, constant current works 3s(Typ.), turn off 17s(Typ.), continuous, self-recover |
|||
|
Over-current Protection |
230VAC, rated load Normal temperature or high temperature |
110% -140% Io, hiccup, self-recover
|
|||
|
230VAC, rated load low temperature |
≥110% full load after derating, hiccup, self-recover |
||||
|
Over-voltage Protection |
24V |
≤35VDC(Hiccup or clamping, self-recover) |
|||
|
Over-temperature Protection |
230VAC, rated load |
Output-off, self-recover |
|||
|
General |
|||||||
|
Item |
Operating Conditions |
Min. |
Typ. |
Max. |
Unit |
||
|
Isolation Test
|
Input- |
Electric strength test for 1min. leakage current <10mA |
2000 |
|
|
VAC |
|
|
Input-Output |
4000 |
|
|
||||
|
Output- |
500 |
|
|
||||
|
Insulation Resistance |
Input- |
At 500VDC
|
100 |
|
|
MΩ
|
|
|
Input-Output |
100 |
|
|
||||
|
Output- |
100 |
|
|
||||
|
Operating Temperature |
|
-40 |
|
+85 |
℃ |
||
|
Storage Temperature |
|
-40 |
|
+85 |
|||
|
Storage Humidity |
Non-condensing |
10 |
|
95 |
%RH |
||
|
Operating Humidity |
10 |
|
90 |
||||
|
Switching Frequency |
PFC |
55 |
|
75 |
kHz |
||
|
DC-DC |
50 |
|
80 |
||||
|
Auxiliary source |
|
65 |
|
||||
|
Power Derating |
Operating temperature derating |
-40℃ to -30℃ |
4 |
|
|
%/℃ |
|
|
+50℃ to+70℃ |
2 |
|
|
|
|||
|
+70℃ to +85℃ |
3 |
|
|
|
|||
|
Input voltage derating |
180VAC-200VAC |
0.5 |
|
|
%/VAC |
||
|
Leakage Current |
264VAC, 60Hz, touch Current |
＜0.5mA |
|||||
|
264VAC, 60Hz, Earth leakage current |
＜5mA
|
||||||
|
Safety Standard |
|
EN62368-1, BS EN62368-1 (Report) Design refer to UL61010-1, IEC/UL62368-1, UL508, GB4943.1 |
|||||
|
Safety Class |
|
CLASSI |
|||||
|
MTBF |
MIL-HDBK-217F@25℃ |
>250,000h |
|||||
|
Warranty |
Ambient temperature: <50℃ |
3 years |
|||||
Introduction
IM-DAC220/DC24V40A converts AC220V to DC24V for industrial automation or industrial control system featuring
With good EMC performance, immunity to noise and reliability, it could ensure stable and continuous operation of the automation system
Mechanical Information
|
Mechanical |
|
|
Case Material |
Metal (AL5052, SPCC) |
|
Dimension |
110.00mm × 124.00mm × 127.00mm |
|
Weight |
1680g(Typ.) |
|
Cooling Method |
Air cooling |
|
Electromagnetic Compatibility |
|||
|
Emissions |
CE |
CISPR32 EN55032 150K - 30MHz |
CLASS B |
|
RE |
CISPR32 EN55032 30MHz - 1GHz |
CLASS B |
|
|
Harmonic current |
IEC/EN61000-3-2 |
CLASS A and D |
|
|
Voltage flicker |
EN61000-3-3 |
|
|
|
Immunity |
ESD |
IEC/EN61000-4-2 Contact1±4KV/Air ±8KV |
perf. Criteria A |
|
RS |
IEC/EN61000-4-3 10V/m |
||
|
EFT |
IEC/EN61000-4-4 ±4KV |
||
|
Surge |
IEC/EN61000-4-5 line to line ±2KV/line to ground ±4KV |
||
|
MS |
IEC/EN61000-4-8 30A/m |
||
|
CS |
IEC/EN61000-4-6 0.15 - 80MHz 10Vr.m.s |
||
|
Voltage dips IEC/EN61000-4-11 |
0% of 200Vac, 0Vac, 20ms |
perf. Criteria C |
|
|
40% of 200Vac, 80Vac, 200ms |
perf. Criteria C |
||
|
70% of 200Vac, 140Vac, 500ms |
perf. Criteria A |
||
Characteristic Curve
Note
1. All curves are for 24V output, measured at input 230VAC, 50Hz, output Io, ambient temperature 25℃, unless otherwise stated
2. With an AC input voltage between 180-200VAC and a DC input between 254-282VDC the output power must be derated as per the temperature derating curves
3. This product is suitable for applications using natural air cooling
Ordering Options
|
IM-DAC220/DC12V1.67A |
AC220V to DC12V1.67A, 20W, Din Rail Mounted, -30℃～70℃ |
|
IM-DAC220/DC24V1A |
AC220V to DC24V1A, 24W, Din Rail Mounted, -30℃～70℃ |
|
IM-DAC220/DC48V2.5A |
AC220V to DC48V2.5A, 120W, Din Rail Mounted, -40℃～70℃ |
|
IM-DAC220/DC48V5A |
AC220V to DC48V5A, 240W, Din Rail Mounted, -40℃～70℃ |
|
IM-DAC220/DC48V10A |
AC220V to DC48V10A, 480W, Din Rail Mounted, -40℃～70℃ |
|
IM-DAC220/DC48V20A |
AC220V to DC48V20A, 960W, Din Rail Mounted, -40℃～85℃ |
