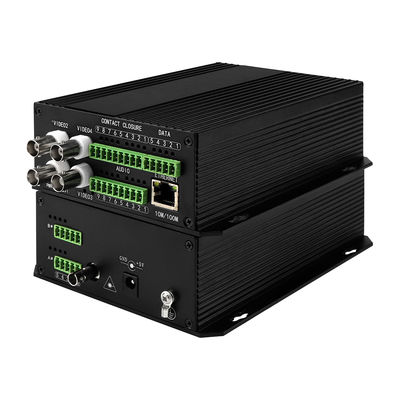

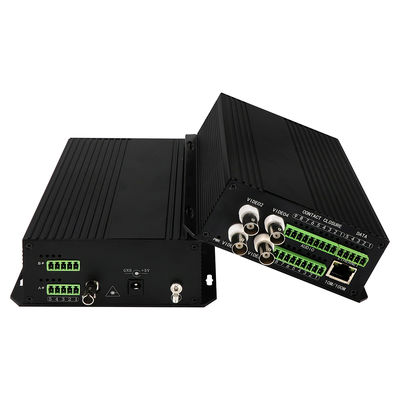

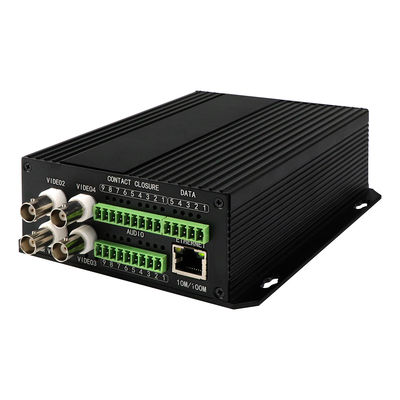

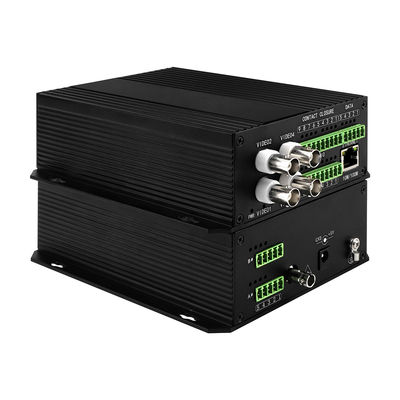

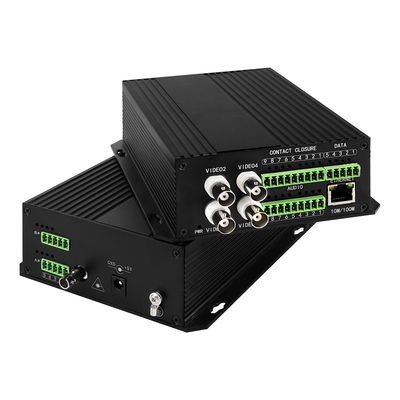

OEM factory Customized Video Fiber Converter Optical Converter Data Video Audio to Fiber Transceiver
Key Features of Video Fiber Converter
Specification
|
Optical |
|
|
Wavelength |
1310nm/1550nm |
|
Output Power |
-8~3dBm |
|
Optic Fiber |
Single mode (9/125um) 20Km to 80Km Multimode (50/125um) 1Km, ( 62.5/125um) 500m |
|
Receiving Sensitivity |
-30dBm |
|
Interface |
FC/ST/SC/LC |
|
Video |
|
|
Bandwidth |
8MHZ |
|
Compatible Systems |
NTSC/PAL/SECAM |
|
Impedance/Voltage |
BNC 75Ω (unbalanced) / 2.0Vp-p |
|
Differential Gain |
< ±1% |
|
Differential Phase |
< ±1 |
|
S/N ratio |
>60dB(weighting)(8 bit) |
|
Interface |
BNC |
|
Data |
|
|
Data Protocol |
RS232, RS422, RS485, Manchester, BIPHASE data |
|
Bandwidth |
0~300kbps |
|
Error rate |
10-9 |
|
Interface |
Phoenix terminal |
|
Audio |
|
|
Impedance / Voltage |
600ohm(unbalanced) / 2.0Vp-p |
|
Frequency Response |
10~20kHz |
|
Total Harmonic Distortion |
<0.05% |
|
Differential Phase |
< ±1 |
|
S/N ratio |
>95dB(weighting) |
|
Interface |
Phoenix terminal |
|
Sample Rate |
48k Hz |
|
Resolution |
16 bits |
|
Contact Closure |
|
|
Signal Input |
Alarm, Binary input, support TTL, RS-232/422/485 or passive switch button |
|
Signal Output |
Arbitrary alarm, Binary output, support TTL, RS-232/422/485 or relay output |
|
Interface |
Phoenix terminal |
|
Telephone |
|
|
Phonetic Bandwidth |
8KHz |
|
Work Mode |
Point to point hot line, program controlling switch/extension mode |
|
Distortion |
<1% |
|
S/N Ratio |
>95dB |
|
Interface |
RJ11 or RJ45 |
|
Ethernet |
|
|
Work Mode |
Full duplex / half duplex, autosensing |
|
Network Speed |
10/100Mbps, autosensing |
|
Interface |
RJ45 |
|
Chassis and Cards |
|
|
Chassis Slots Quantity |
18 slots |
|
Compatibility(with cards) |
1~4ch cards(18pcs); 8ch cards(9pcs) |
|
Flexibility |
Supports mixed installation of different configurations |
|
Cards |
In 4ch PCB(153x100x10mm) or 8ch PCB size (153x100x25mm) configurations which require larger size can’t be used with this system |
|
Electrical. Environmental. Mechanical |
|
|
Operating Voltage |
Standalone:220VAC to 5V/12VDC, Rack: dual 220V/-48V AC, card: powered by chassis |
|
Operating Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-45℃～+85℃ |
|
Humidity |
0~95% non-condensing |
|
Dimension And Weight |
Standalone and card: depends on different configurations, Chassis: 19”3U |
Application
FAQ:
Q1. Can I have a sample order for video fiber converter?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for optical fiber switch order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
