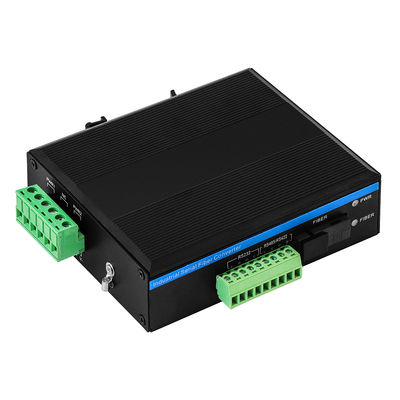

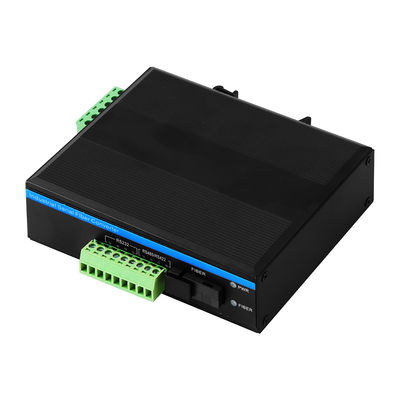

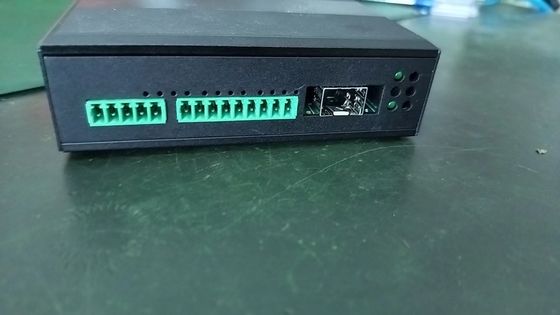

Industrial Optcial Converter RS485 RS422 RS485 Serial Data
to Fiber Converter Fiber Optic Modem
Introduction of Serial Data to Fiber Converter
IM2101-RS232/RS422/RS485 is a multi-function and economic RS-232/485/422 interface fiber optic product. It is the best choice to connect RTU to HOST or SCADA controller. It uses optic fiber as transmission media, increasing the system. transmitting function. Communication equipments abstain menace effectively from lightning strike, surge, electromagnetism disturb in the working environment.
Specification of Fiber Optic Modem
| Standard | EIA /TIA RS232, RS-422, RS-485 |
| Fiber Connector | SC standard, ST/FC optional |
| Fiber Distance | 50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km |
| Serial Connector | RS-232 ,RS-422, RS-485: phoenix terminal |
| Serial Distance | RS-232 port 15m, RS-422, RS-485: 1500 meters |
| Rate | 0-120Kbps |
| Baud Rate | 300 Baud to 115,200 Baud |
| RS-485 | D+, D-, GND |
| RS-422 | R+, R-, T+, T-, GND |
| RS-232 | IN, OUT, GND |
| Power rate | 2W, 12-52V |
| Static protection | 15KV electric static discharge (ESD) protection |
| Surge protection | 1500W/sec surge protection |
| Operation Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Storage Humidity | 5%~90% non-condescending |
| Dimensions | 114*93*35mm |
| Weight | 0.35kg/pc net weight |
Application
